3-Wire Data Booster

Description

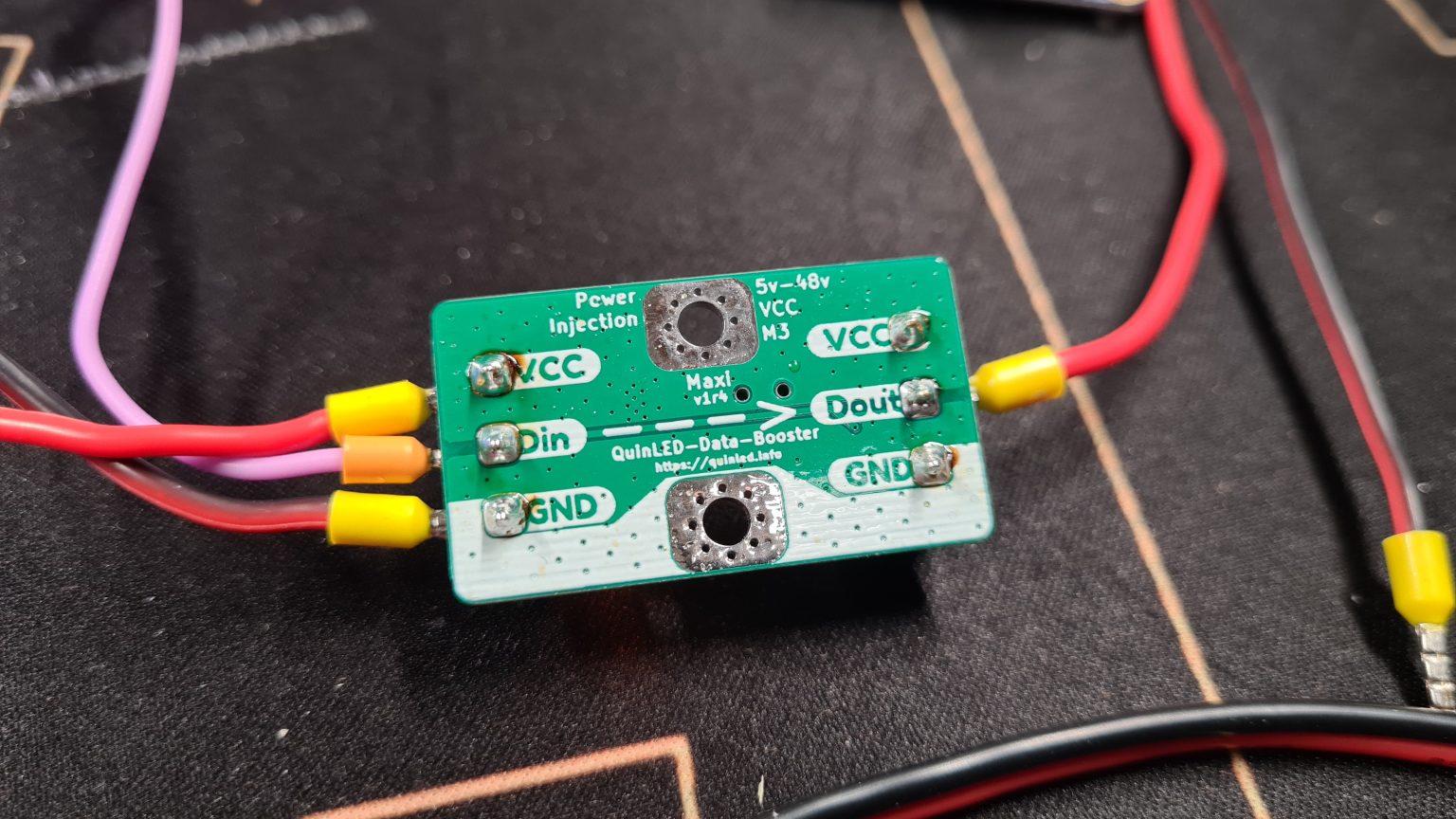

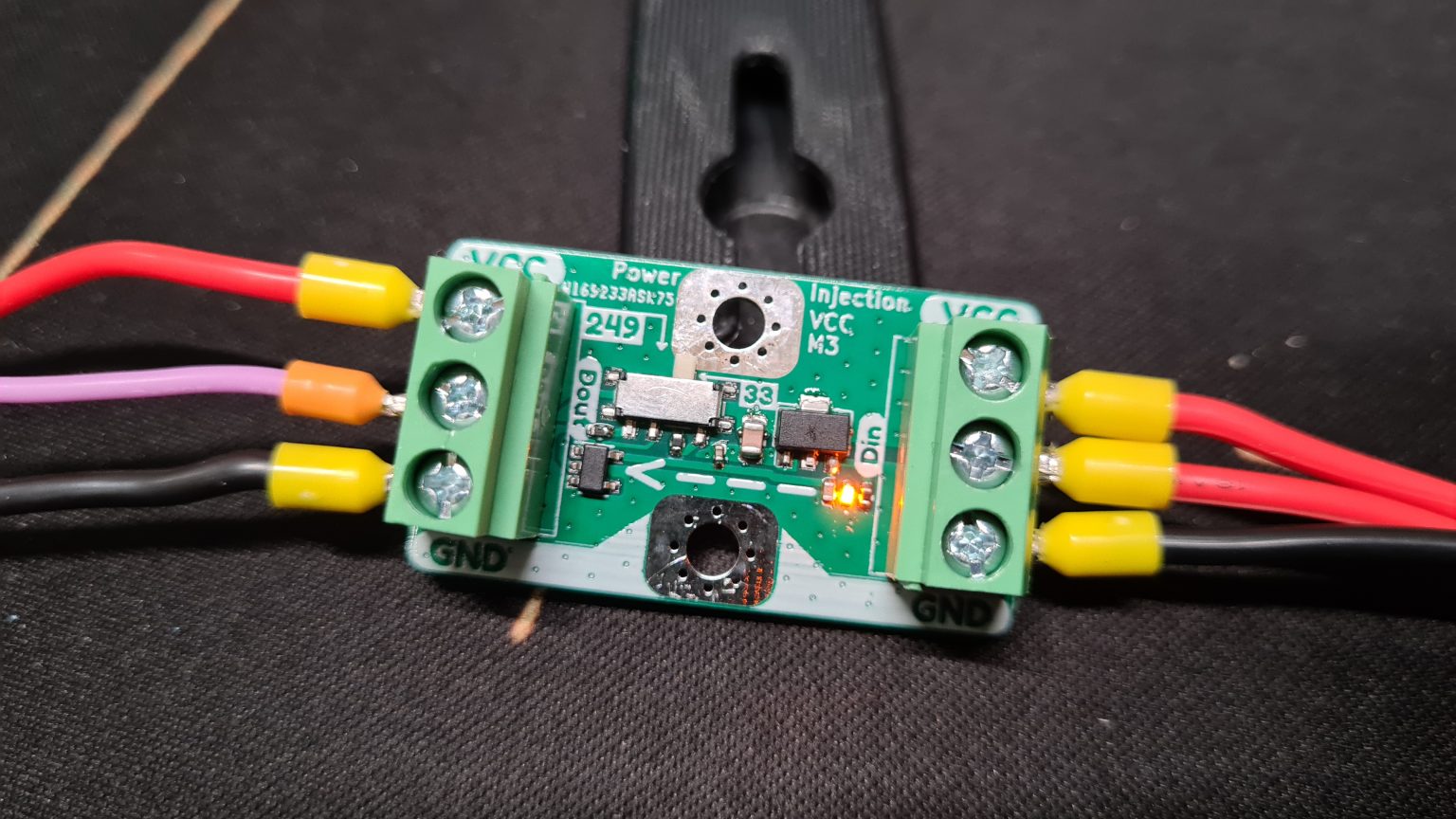

QuinLED-Data-Booster (Maxi) board has the following features:

• Supports power in/out of 5v – 48v
  • High current carrying board design
• Power injection points with M3 bolt
  • Use direct solder to pad/hole
  • Use crimped fork connector
    • M3 nut (on bottom) with M3 screw (on top)
• Re-broadcast Data Signal
  • Onboard level-shifter to take in signal and send it out again
  • “Cleans up” data signals
    • Basically able to discern better between a 1 and 0 then a pixel and send it out strong again
• Data Signal cable conditioner
  • Switch selectable 33Ω and 249Ω resistor output
